Logitech CC3500e Group HD Video Audio Conferencing System

• Logitech CC3500e Group HD Video Audio Conferencing System See every detail with HD video and 10x zoom
• Works with your meeting and video conferencing applications
• Crystal-clear audio for up to 14 | 20 (standard | + expansion)

PERFECT FOR LARGER ROOMS

• GROUP, our video conferencing solution for rooms that seat 14–20 people, delivers high quality HD video and crystal clear audio, allowing any meeting place to be a video collaboration space. With advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls, it’s easier than ever to include everyone in the conversation.

PLUG-AND-PLAY SIMPLICITY

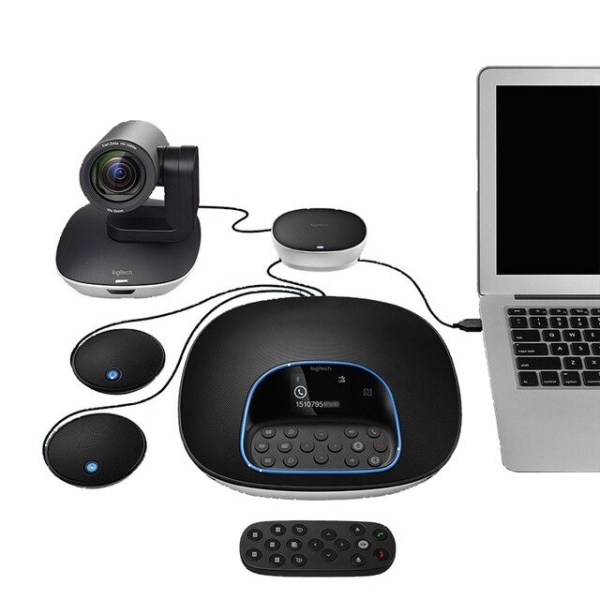

• USB plug-and-play connectivity makes GROUP a breeze to deploy and use. Simply connect GROUP the conference room computer or your laptop through USB, and you’re good to go. Use GROUP with any video conferencing software, including those you already use. For great-sounding audio calls, pair your mobile device with Bluetooth® wireless technology to the GROUP speakerphone.

OPTIONS GIVE YOU VERSATILITY

• Customize the setup to match the layout and size of your room. Mount the camera on a table, tripod, or wall. Optional expansion mics extend audio coverage up to 28 feet (8.5 meters). Add an optional 33 feet (10 meter) or 49 feet (15 meter) cable to increase the reach of the speakerphone or camera.

HIGH-DEFINITION VIDEO

• Bring meetings into focus with GROUP’s premium lens, 10x lossless zoom, and HD 1080p/30 performance. Perfectly frame presenters and whiteboards with pan/tilt control, and zoom in for detail and clarity. GROUP’s 90° diagonal field-of-view provides ideal coverage for medium and large conference rooms, with motorized pan and tilt for wall-to-wall, floor-to-ceiling coverage.

NATURAL-SOUNDING AUDIO

• Everyone hears and can be heard with GROUP’s full-duplex speakerphone, which delivers sound that’s crisp, clear, and highly intelligible. Acoustic echo cancellation and noise reduction technology make conversations natural-sounding while reducing reverberation and ambient noise.

TECHNICAL SPECIFICATIONS

CAMERA

• Smooth motorized pan, tilt and zoom controlled from remote or console
• Pan +/- 90°
• Tilt +35° / -45
• 10x lossless HD zoom
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2
• Full HD 1080p 30fps
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Autofocus
• 5 camera presets
• Far-end control (PTZ) of ConferenceCam product (with supported services)
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread

REMOTE CONTROL

• Camera, speakerphone, and call control
• 5 camera presets
• Docks on speakerphone
• IR 8.5 m/28-foot range
• CR2032 battery (included)

SPEAKERPHONE

• Full-duplex performance
• Acoustic echo cancellation
• Noise reduction technology
• Ultra-wideband audio
• Pairs with mobile devices via Bluetooth and NFC
• LCD for caller ID, call duration and other functional response
• LEDs for speakerphone streaming, mute, hold, and Bluetooth
• Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
• 5 camera presets for pan, tilt, and zoom settings
• Kensington security slot

MICROPHONES

• Pickup range: 6m / 20 ft
• Pickup range with expansion mics: 8.5 m / 28 ft
• Four omnidirectional, beamforming microphones
• Frequency response: 100Hz – 11KHz
• Sensitivity: -28dB +/-3dB
• Distortion: <5% from 200Hz

HUB / CABLES / POWER

• Central Hub connects and powers all components
• Under-table mounting adhesive included
• One cable to camera: 5 m / 16 ft
• One cable to speakerphone: 5 m /16 ft
• Extended cables available (10 m and 15 m)
• One USB cable for connection to PC/Mac (2 m / 6.6 ft)
• AC Power adapter with regional plugs
• Power cable (3 m / 9.8 ft)
